Picture No | 10080125 |
Date | 1915 |
Description | SHORT RIFLE DIAGRAM 1915 |
Details |

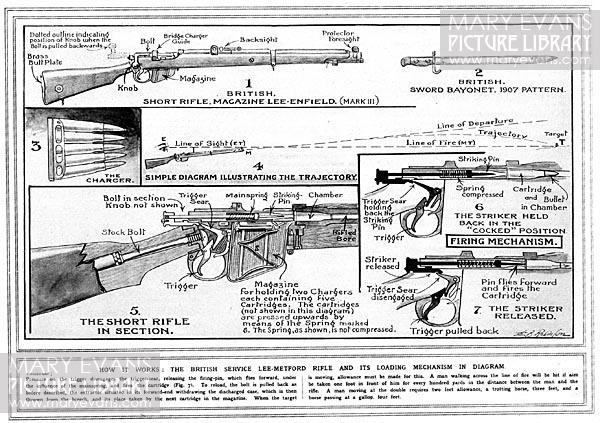

Multi-part diagram, showing the complex working systems of a short rifle, taking a Lee- Enfield Mark III magazine.
|
Source | Pen and ink diagram by E.B.Robinson |
Credit | Mary Evans Picture Library |
Restrictions |
|
