Georgius Agricola, De Re Metallica, Triangulation

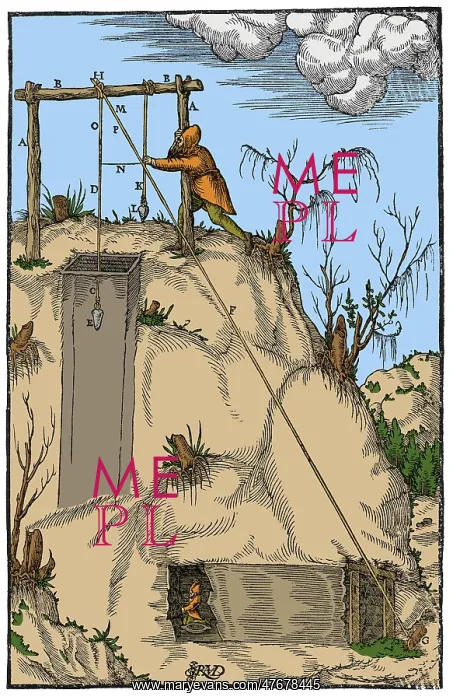

Woodcut from De Re Metallica. Triangulation applied to a tunnel being driven to meet a shaft. HDE is a cord suspended over the shaft, HFG is a second cord connecting to the mouth of the tunnel, and KL is a third cord to help establish the triangle. This provides a ratio for determining the tunnel's length. Georgius Agricola (March 24, 1494 - November 21, 1555) was a German scholar known as the father of mineralogy'. His book De Re Metallica, published in 1556, was a treatise on mining and extractive metallurgy, illustrated with woodcuts illustrating processes to extract ores from the ground and metal from the ore, and the many uses of water mills in mining. Agricola described and illustrated how ore veins occur in and on the ground, making the work an early contribution to the developing science of geology. He described prospecting for ore veins and surveying in great detail, as well as washing the ores to collect the heavier valuable minerals, such as gold and tin. It was also an important chemistry text for the period and is significant in the history of chemistry. De re metallica is considered a classic document of Renaissance metallurgy, unsurpassed for two centuries
